Tool Steel
Tool Steel

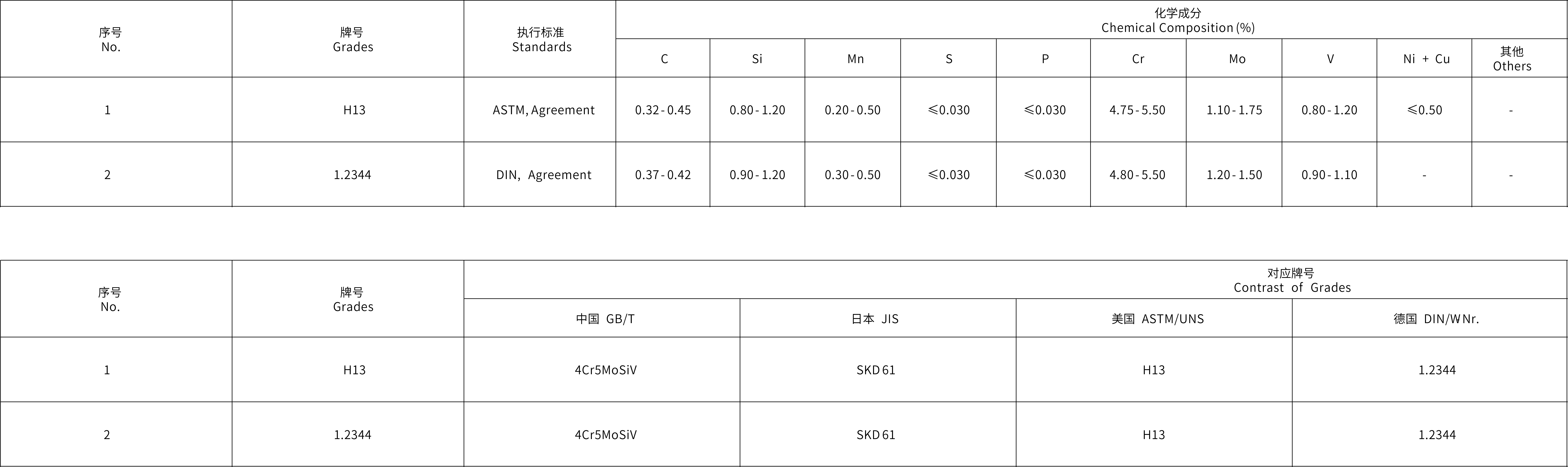

01.Rolled Hot Working Die Steel
| 序号 No. | 牌号 Grades | 执行标准 Standards | 化学成分 Chemical Composition (%) | |||||||||
| C | Si | Mn | S | P | Cr | Mo | V | Ni + Cu | 其他 Others | |||
| 1 | H13 | ASTM, Agreement | 0.32-0.45 | 0.80-1.20 | 0.20-0.50 | ≤0.030 | ≤0.030 | 4.75-5.50 | 1.10-1.75 | 0.80-1.20 | ≤0.50 | - |
| 2 | 1.2344 | DIN, Agreement | 0.37-0.42 | 0.90-1.20 | 0.30-0.50 | ≤0.030 | ≤0.030 | 4.80-5.50 | 1.20-1.50 | 0.90-1.10 | - | - |
序号 | 牌号 Grades | 对应牌号 Contrast of Grades | |||
| 中国 GB/T | 日本 JIS | 美国 ASTM/UNS | 德国 DIN/W-Nr. | ||
| 1 | H13 | 4Cr5MoSiV | SKD 61 | H13 | 1.2344 |
| 2 | 1.2344 | 4Cr5MoSiV | SKD 61 | H13 | 1.2344 |

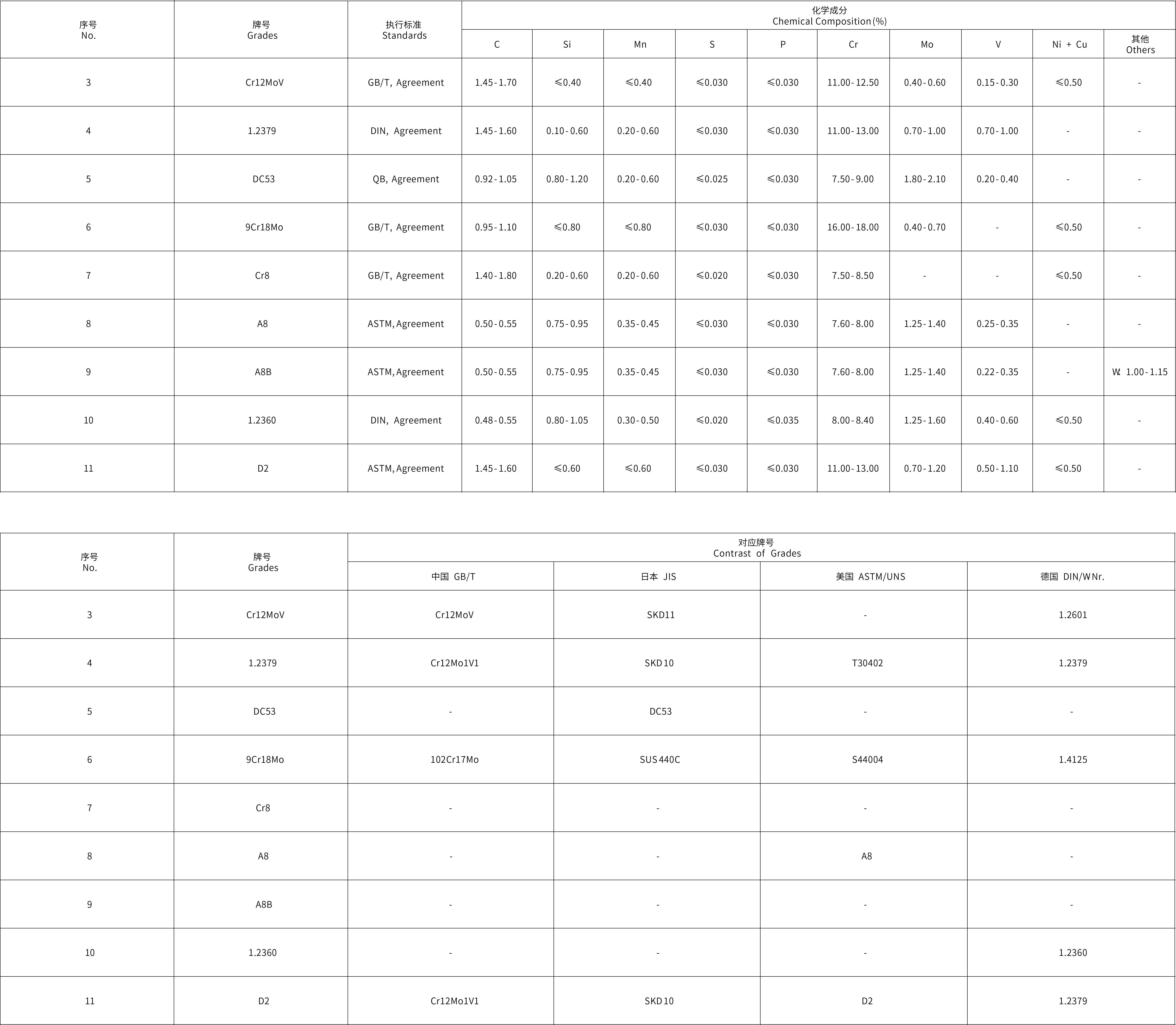

02.Rolled Cold Working Die Steel
序号 | 牌号 Grades | 执行标准 Standards | 化学成分 Chemical Composition (%) | |||||||||
| C | Si | Mn | S | P | Cr | Mo | V | Ni + Cu | 其他 Others | |||
| 3 | Cr12MoV | GB/T, Agreement | 1.45-1.70 | ≤0.40 | ≤0.40 | ≤0.030 | ≤0.030 | 11.00-12.50 | 0.40-0.60 | 0.15-0.30 | ≤0.50 | - |
| 4 | 1.2379 | DIN, Agreement | 1.45-1.60 | 0.10-0.60 | 0.20-0.60 | ≤0.030 | ≤0.030 | 11.00-13.00 | 0.70-1.00 | 0.70-1.00 | - | - |
| 5 | DC53 | QB, Agreement | 0.92-1.05 | 0.80-1.20 | 0.20-0.60 | ≤0.025 | ≤0.030 | 7.50-9.00 | 1.80-2.10 | 0.20-0.40 | - | - |
| 6 | 9Cr18Mo | GB/T, Agreement | 0.95-1.10 | ≤0.80 | ≤0.80 | ≤0.030 | ≤0.030 | 16.00-18.00 | 0.40-0.70 | - | ≤0.50 | - |
| 7 | Cr8 | GB/T, Agreement | 1.40-1.80 | 0.20-0.60 | 0.20-0.60 | ≤0.020 | ≤0.030 | 7.50-8.50 | - | - | ≤0.50 | - |
| 8 | A8 | ASTM, Agreement | 0.50-0.55 | 0.75-0.95 | 0.35-0.45 | ≤0.030 | ≤0.030 | 7.60-8.00 | 1.25-1.40 | 0.25-0.35 | - | - |
| 9 | A8B | ASTM, Agreement | 0.50-0.55 | 0.75-0.95 | 0.35-0.45 | ≤0.030 | ≤0.030 | 7.60-8.00 | 1.25-1.40 | 0.22-0.35 | - | W：1.00-1.15 |
| 10 | 1.2360 | DIN, Agreement | 0.48-0.55 | 0.80-1.05 | 0.30-0.50 | ≤0.020 | ≤0.035 | 8.00-8.40 | 1.25-1.60 | 0.40-0.60 | ≤0.50 | - |
| 11 | D2 | ASTM, Agreement | 1.45-1.60 | ≤0.60 | ≤0.60 | ≤0.030 | ≤0.030 | 11.00-13.00 | 0.70-1.20 | 0.50-1.10 | ≤0.50 | - |
| 序号 No. | 牌号 Grades | 对应牌号 Contrast of Grades | |||
| 中国 GB/T | 日本 JIS | 美国 ASTM/UNS | 德国 DIN/W-Nr. | ||
3 | Cr12MoV | Cr12MoV | SKD11 | - | 1.2601 |
| 4 | 1.2379 | Cr12Mo1V1 | SKD 10 | T30402 | 1.2379 |
| 5 | DC53 | - | DC53 | - | - |
| 6 | 9Cr18Mo | 102Cr17Mo | SUS 440C | S44004 | 1.4125 |
| 7 | Cr8 | - | - | - | - |
| 8 | A8 | - | - | A8 | - |
| 9 | A8B | - | - | - | - |
| 10 | 1.2360 | - | - | - | 1.2360 |
| 11 | D2 | Cr12Mo1V1 | SKD 10 | D2 | 1.2379 |
03.Delivery Conditions
规格范围 Diameter Range | 热处理状态 Heat Treated Condition | 表面状态 Surface Condition |
圆棒 Round Bar φ6.00mm - 75.00mm | 退火处理 Annealed | 黑棒 Black 剥皮棒 Peeled 车光棒 Turned 压光棒 Calendered |
